GH-502B

SFS-2B
HORN

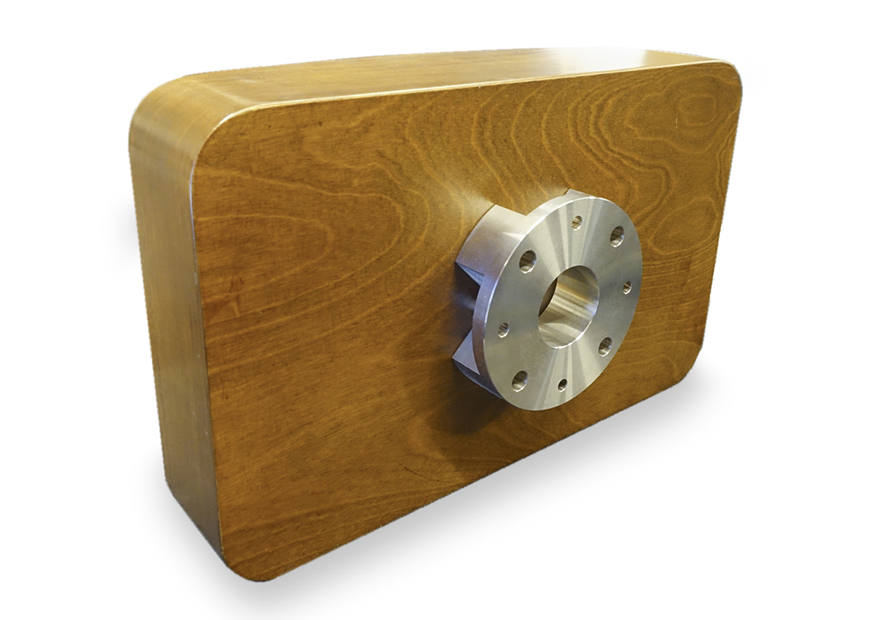

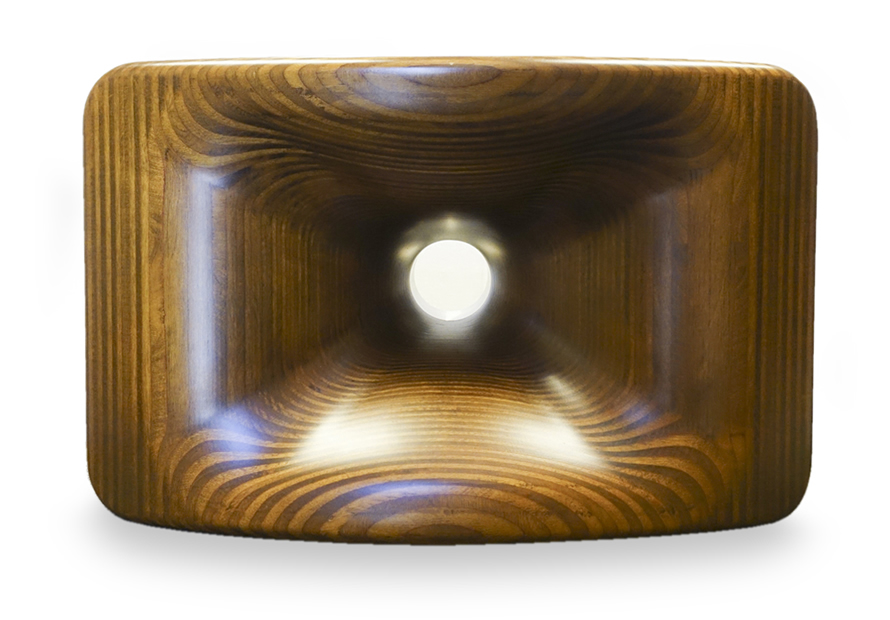

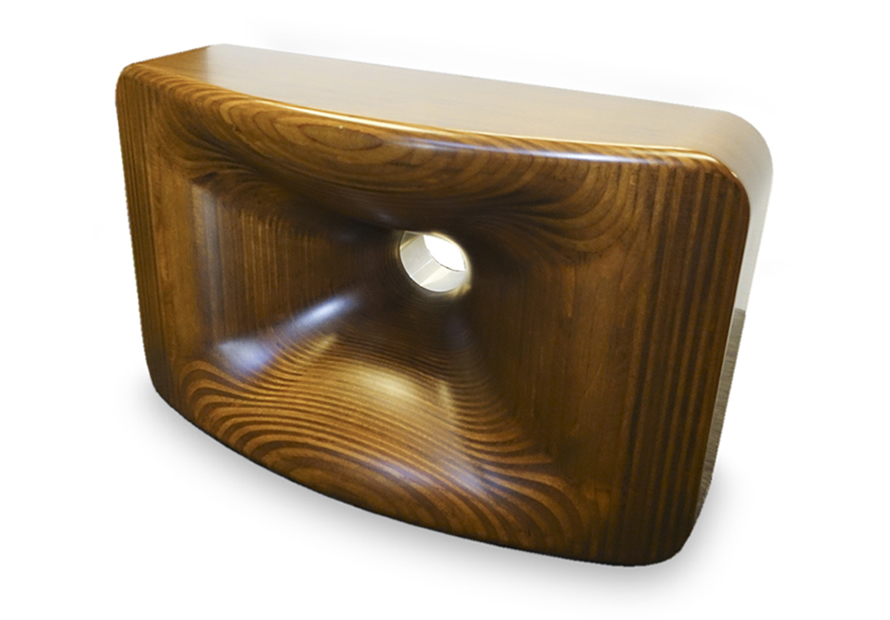

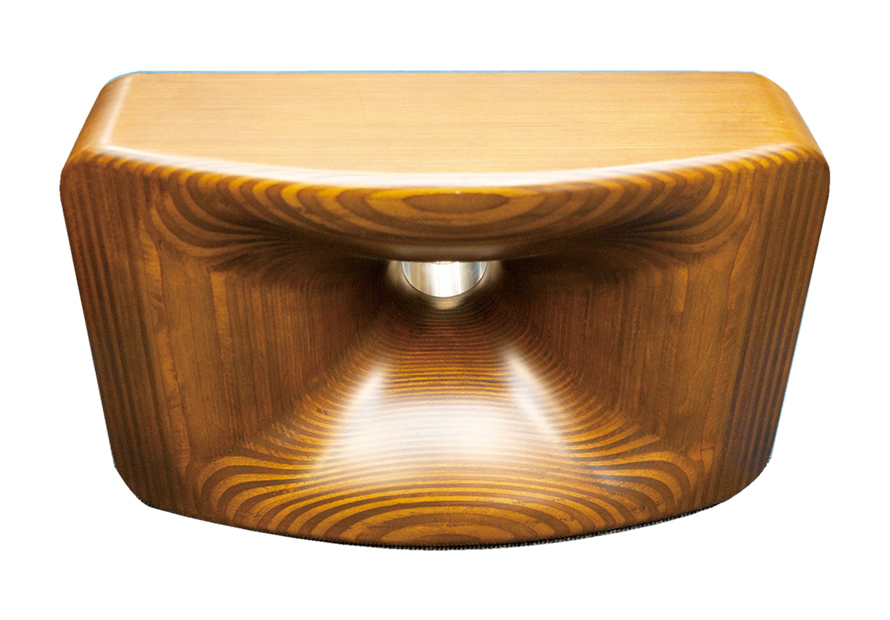

Wooden short radial horn(Improved type) that reproduces a natural sound field feeling

クリックで拡大する

Wooden short radial horn(Improved type) that reproduces a natural sound field feeling

Characteristic

  • Seamless wall thickness by hollowing out laminate ⇒ Not only high density but also beautiful finish and less unnecessary resonance
  • Integrated moldingof computer NC technology ⇒ Natural and straightforward sound quality created by curves without distortion in the vertical and horizontal directions.
  • Throat part uses thick stainless steel ⇒ Exponential curve reduces depth and increases system installation flexibility
  • Finless straight type that takes advantage of the characteristics of the driver ⇒ Spaciousness and sound field of the sound,good sound quality with a sense of speed
  • Combination with GSU-D04R is the best ⇒ You can feel the horn’s perspective,atmosphere(aerial feeling) ,and vocal
  • Short horn design ⇒ Reduced depth for increased system installation flexibillty.
  • The sound of the driver unit appears directly ⇒ you don’t feel horn atmosphere

Specification

Throat diameter49mm
Recommended crossover800Hz
Cut-off frequency500Hz
External dimentions398×250×155mm(W×H×D)
Weight8.0kg
ApplicableunitJBL / TAD / SONY etc…which is 2inch throat driver
